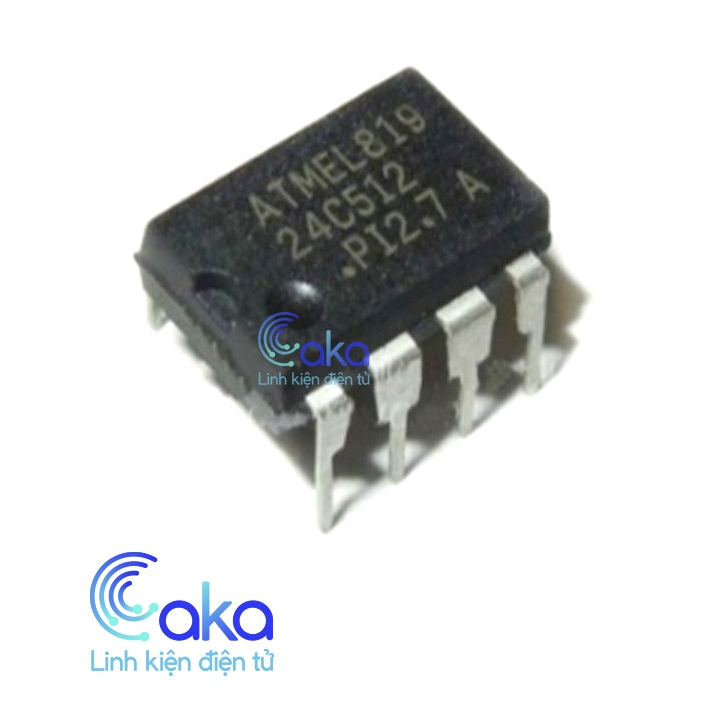

24C512 EEPROM

24C512 EEPROM provides 524,288 bits of serial electrically erasable and programmable read only memory (EEPROM) organized as 65,536 words of 8 bits each. The device's cascadable feature allows to 4 devices to share a common 2-wire bus.

24C512 EEPROM

Thông số kĩ thuật :

• 5.0 (VCC ­ 2.7 (VCC ­ 1.8 (VCC to 3.6V)

• Internally Organized 8 2-wire

• Serial Interface Schmitt Triggers

• Filtered Inputs for Noise Suppression Bidirectional Data Transfer Protocol 1 MHz (5V), 400 kHz (2.7V) and 100 kHz (1.8V)

• Compatibility Write Protect Pin for Hardware and Software

• Data Protection 128-byte Page Write Mode (Partial Page Writes Allowed)

• -timed Write Cycle (5 ms Typical)

• High Reliability ­ Endurance: 100,000 Write Cycles

• Data Retention: 40 Years ­

• ESD Protection: >4000V

• Automotive Grade and Extended Temperature

• Devices Available 8-pin PDIP and 20-pin JEDEC SOIC

24C512 EEPROM
